pickup-uri, CD-playere, DAC-uri şi streamere:

pickup-uri, subansamble şi accesorii:

phono stages:

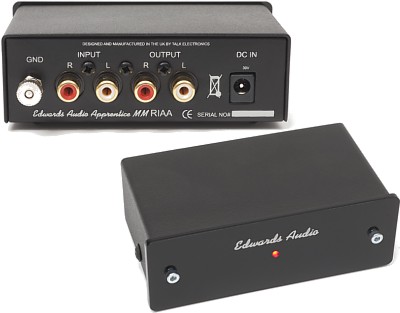

Edwards Audio Apprentice MM Phono Stage

Specifications
Max Input MM 75mV
Gain 40dB MM
THD Distortion <0.01% 1kHz
Signal to noise ratio (MM) 5mV (MM) A Wtd -83dB
RIAA accuracy within 0.5dB
Stereo separation better than 66dB 20-20kHz
Input Loading MM 47K with 150pF
Dynamic Range 110dB
Output impedance Max output level 7.5V RMS depending upon input
Dimensiuni WxHxL 114.5mm x 47.5mm x 160mm
Greutate 1Kg
Power consumption 1.5W
Still Made in Britain! Garanţie: 36 luni.

Preţ: 100 €

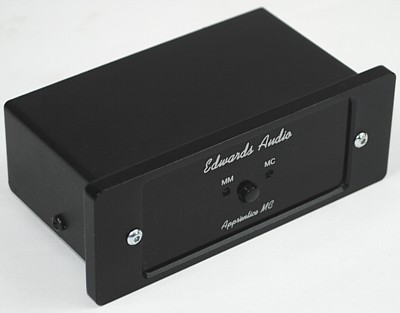

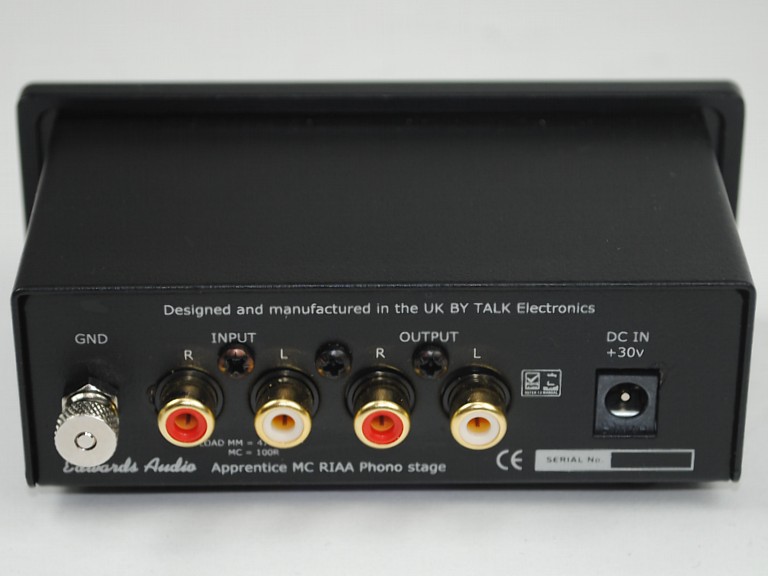

Edwards Audio Apprentice MC Phono Stage

Max Input MM 75mV
Gain 42/63dB MM/MC
THD Distortion <0.01% 1kHz
Signal to noise ratio (MM/MC) 5mV/500uV (MM/MC) A Wtd -83dB/65dB
RIAA accuracy within 0.3dB
Stereo separation better than 66dB 20-20kHz
Input Loading MM/MC 47K/100R with 150pF
Dynamic Range 110dB
Output impedance Max output level 7.5V RMS depending upon input
Dimensions WxHxL approx. 120mm x 47.5mm x 70mm
Weight 1Kg
Power consumption 1.5W
Still Made in Britain! Garanţie: 36 luni. Click pe imagine pentru detalii!

Preţ listă: 220 €
Preţ Audio Alchemy: 200!!!

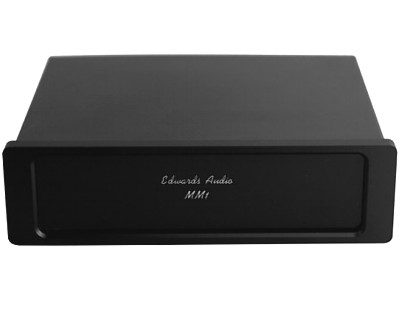

Edwards Audio MM1 MK2 Phono Stage

Max Input 83mV
Nominal Input 5mV
Gain 42dB
THD Distortion <0.008% 1kHz
Signal to noise -87db A weighted/ref 5mV
RIAA within 0.25dB
Stereo separation better than 75dB 20-20kHz
Input Loading 47K 120pF
Output impedance Nominal output 185.5mV
Max output level 10.3V RMS depending upon input
Dimensions WxHxL 114.5mm x 47.5mm x 89mm
Weight 0.5kg
Power consumption (Max)  4W
Still Made in Britain! Garanţie: 36 luni.

Preţ: 350 €

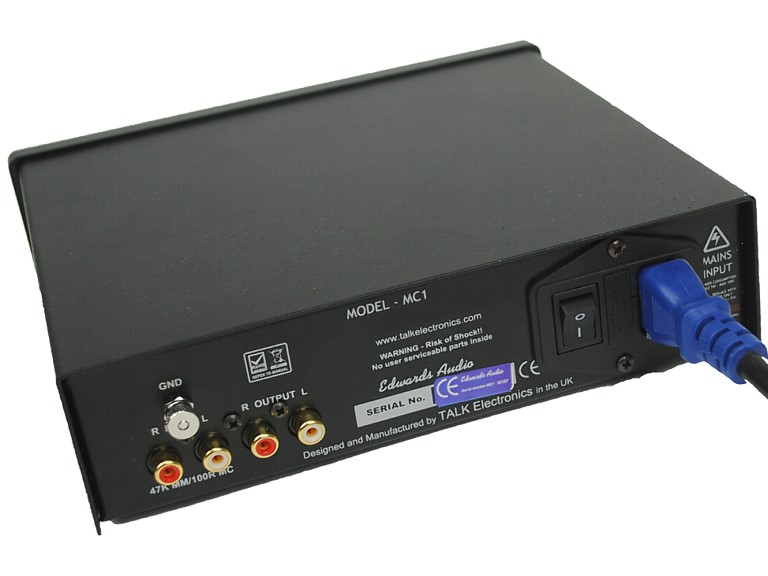

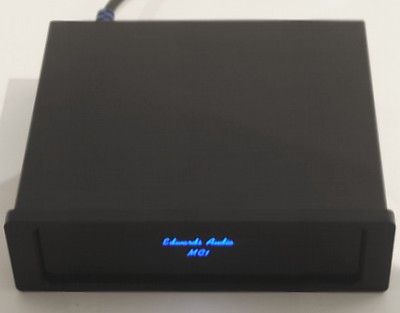

Edwards Audio MC1 MK2 Phono Stage

Max Input 83mV
Nominal Input 5mV
THD Distortion <0.008% 1kHz
Signal to noise -83db A weighted/ref 5mV
RIAA within 0.25dB
Stereo separation better than 75dB 20-20kHz
Input Loading MM 47K 120pF 100Ohms 10nF
Input Loading MC 100Ohms 10nF
Output impedance 10Ohms
Nominal output 185.5mV
Max output level 10.3V RMS depending upon input
Dimensions WxHxL 114.5mm x 47.5mm x 89mm
Weight 0.5kg
New version with internal PSU
Power consumption (Max) 2.5W
Still Made in Britain! Garanţie: 36 luni. Click pe imagine pentru detalii!

Preţ listă: 480 €
Preţ Audio Alchemy: 380!!!

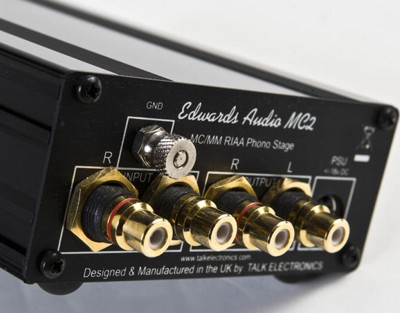

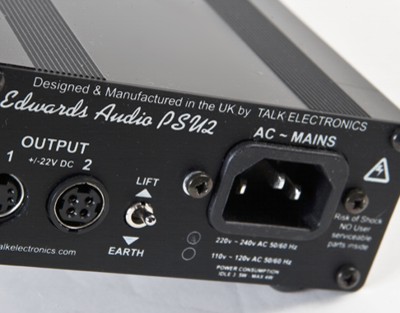

Edwards Audio MC2/PSU2 Phono Stage

NEW model - 2 Box MM/MC Phono stage, Front panel switchable MONO/STEREO and MM/MC modes - with internal jumper options for input loading (R&C) and input gain.
Supplied with dedicated outboard PSU
.
Max Input MC 10mV
Nominal Input 0.11mV
Max Gain MC input (MM) 63dB (40)
THD Distortion <0.006% 1kHz
Signal to noise -72db A weighted/ref 5mV
RIAA within 0.25dB
Stereo separation better than 55dB 20-20kHz
Input Loading MM 47K 120pF
Input Loading MC 100Ohms 2.2nF
Output impedance <10Ohms
Nominal output 100mV 1V
Max output level 9.8V RMS depending upon input
Dimensions WxHxL 114.5mm x 47.5mm x 160mm
Weight 0.5kg + 1.3kg
Power consumption (Max) 3W
Still Made in Britain! Garanţie: 36 luni. Click pe imagine pentru detalii!

Preţ listă: 1200 €
Preţ Audio Alchemy: 1040!!!

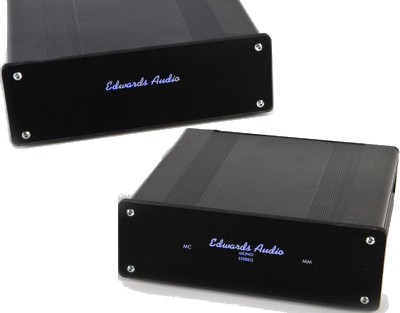

Edwards Audio MC3/PSU3 Phono Stage

New model coming in SEPT 2015!
Max Input MC 26mV
Max Input MM 116mV
Gain 40dB (MM) -/58dB/61dB/64dB/67dB/70dB/ and 73dB
THD Distortion <0.005% 1kHz
Signal to noise -75dB (MC 64dB Gain)
Signal to noise -83dB (MM 40dB Gain)
Stereo separation better than 85dB 20-20kHz
Input Loading Resistance 22R/47R/100R/470R/1K/47K Input 1 MC
Input Loading Capacitance Input 1 MC 120pF/1n0/2n2/4n7/10nF and 22nF
Input 2 MM Input Loading 47K with 120pF (Fixed)
Output impedance Max Output level 11.5v depending upon input
Dimensions WxHxL 175mm x 52.5mm x 160mm
Weight 4.7Kg
Power consumption (Max) 3.5W
Still Made in Britain! Garanţie: 36 luni.

Preţ listă: 1800 €
Preţ Audio Alchemy: 1570!!!
