amplificatoare, cutii, accesorii:

amplificatoare Ayon

preamplificatoare Ayon



Ayon Auris Preamplifier

“Reference ” Preamp‐Unbalanced , Modular & upgradable design;
2 x 6H30 SE output stage, 4x Line In/RCA, 1 x HT/In, 2x RCA/O,
1 x Tape Out, 4 x 6Z4, Tube Power supply & Choke regulated, RC.

Tube Preamplifier

Ayon Auris

Class of Operation

Pure Class A, Triode

Tube Complement: Line

6H30

Maximum Output (at 1 kHz )

~ 20V rms

S/N ratio

> 98 dB

Input Impedance

100 KOhm

Output Impedance

~ 300 Ohm

Frequency Response / Line

 5Hz - 100kHz

Harmonic Distortion (at 1V ) Line

< 0.01%

Input

4 x Line-RCA, 1 x Phono MM/MC, 1 x HT-RCA, 2 x Line-XLR

Output

2x RCA, 1x XLR , 1x Tape out

Dimensions (WxDxH) cm

50x43x11 cm

Weight

19 kg

Garanţie 36 luni! Click pe imagine pentru detalii!

Preţ începând de la 6430 €

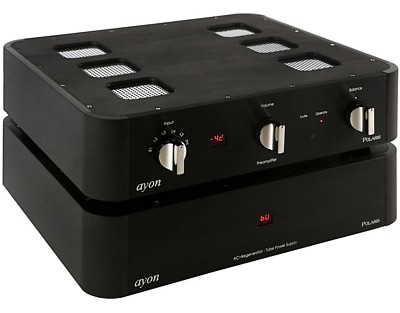

Ayon Polaris III Preamplifier

“State of the art” Preamp, Dual chassis design; 5x Line In / RCA,
1x Phono MC, 2x RCA/O, 1x Bal/O, External AC ~ Regenerator ‐ Tube Power Supply & Choke regulated, 4 x C3M, 2 x 6H30, 4 x EY91, RC,
2 channel VTC Volume control / 42 position ‐ electronic‐relay system.

Tube Preamplifier

Ayon Polaris III

Class of Operation

Pure Class A, Triode-Pentode

Tube Complement

C3M, 6H30

Maximum Output (at 1 kHz )

40V rms

S/N ratio

> 96 dB

Input Impedance

>1MOhm

Output Impedance

30 Ohm

Frequency Response / Line

 0.5Hz - 400kHz

Harmonic Distortion (at 1V ) Line

 < 0.01%

Harmonic Distortion (at 1V ) Phono

 < 0.1%

Input

5 x Line RCA, 1 x Phono MC

Output

2x RCA, 1x XLR ,

AC~ ReGenerator

max. 300W

Frequency

60Hz

Dimensions Pre (WxDxH) cm

50x43x11 cm

Dimensions ReGenerator P.S. (WxDxH) cm

50x43x11 cm

Weight (Pre & Power Supply)

39 kg

Garanţie 36 luni! Click pe imagine pentru detalii!

Preţ listă începînd de la 20000 €
Preţ Audio Alchemy începând de la 14260 €!!!

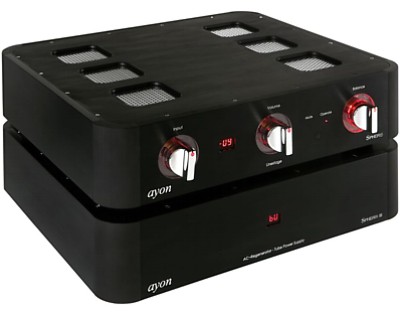

Ayon Spheris III - Linestage Preamplifier

“State of the art” Linestage, Dual chassis design; 4 x C3M 4 x EY91, Separate External Tube Power Supply with AC~ Regenerator; 4xLine RCA/I , 1x Bal/ I, 1xBal/O, 2x RCA/O, RC, 4 channel VTC Volume control / 42 position ‐ electronicrelay system.

Tube Preamplifier

Ayon Spheris III - Linestage

Class of Operation

Pure Class A, Triode-Pentode

Tube Complement

C3M

Maximum Output (at 1 kHz )

40V rms

S/N ratio

> 98 dB

Input Impedance

> 1MOhm

Output Impedance

30 Ohm

Frequency Response / Line

 0.5Hz - 500kHz

Harmonic Distortion (at 1V ) Line

 < 0.01%

Harmonic Distortion (at 1V ) Phono

 < 0.1%

Input

 x Line RCA, 1 x Bal XLR

Output

2 x RCA
1 x XLR
1 x Tape out

AC~ ReGenerator

max. 300 W

Frequency

60Hz

Dimensions Pre (WxDxH) cm

50x43x11 cm

Dimensions ReGenerator P.S. (WxDxH) cm

50x43x11 cm

Weight (Pre & Power Supply)

43 kg

Garanţie 36 luni! Click pe imagine pentru detalii!

Preţ listă: 33000 €
Preţ Audio Alchemy: 21990 €!!!
