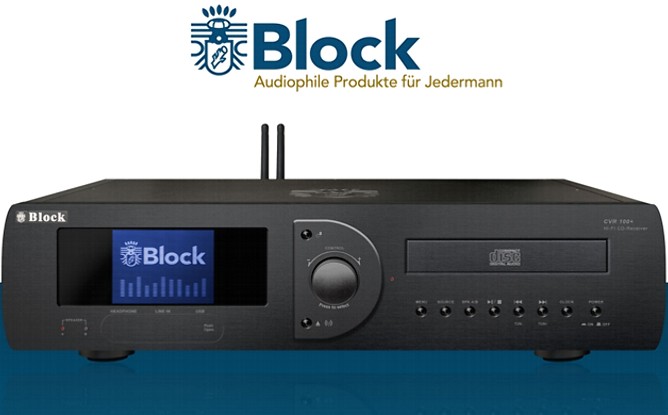

Block CVR-100+ MKII CD Internet Receiver




Every function an ambitioned listener could possibly need is integrated in this unit!
Its extensive connectivity makes it future-proof and will let you integrate all major audio sources.

The CVR-100+ offers a very detailed crystal clear sound which is on a par with its brilliant design.

Amplifier:
It includes an 2 x 60 watt stereo class AB amplifier.

All functions can be easily controlled by the massive adjustment wheel, the included remote control or the app. You can also change "Treble", "Bass" and "Balance" and some DSP-features like "Stereo", "Live", "Stadium" and "Hall".

There is no problem operating active loudspeakers or a sub with the CVR-100+ by using its pre-out function. If you think the 2 x 60 Watts at 4 Ohm amplifying not enough: No problem. You also can connect another amplifier via the pre-out. We recommend the purchase of our A-100 power amplifier (2 x 150 watts at 8 ohm, 2 x 225 watts at 4 ohm) or the V-120 amplifier ( 2 x 120 watts at 4 Ohm).
You can use the CVR-100+ with 2 pairs of speakers.

Tuner:
With the built-in triple tuner you can receive the whole range of modern radio enjoyment. You will be able to receive FM transmissions, digital radio with the DAB-tuner and internet radio via streaming. There are thousands of radio stations online which can be chosen and organized by the using the adjustment wheel or via a special website where you have to register once an can comfortably organize all your favorites.

Organizing your favorite internet radio stations

Please create an free account http://www.wifiradio-frontier.com here.
There you can register your device
by typing in it's code.

Afterwards you can choose your favorites
from various lists and e.g. organize them in folders
You'll directly find them
on your device at "favorites".

. DAB is the future of radio transmission. Digital broadcasting in nearly CD quality with some extra features. If you want to learn more, please take a look here: http://www.ukdigitalradio.com (UK)

CD-Player:
The CD-player plays all common discs like HDCD/CD-R/CD-RW/MP3.

Media-Player and streaming:
Thanks to its multimedia network-ability with WLAN, LAN and DLNA-standard

Digital Living Network Alliance (DLNA)

DLNA is a standard protocol to connect devices
in a home network so they can exchange media.
If you are running a WLAN-Router for internet
you automatically run a DLNA-network.
The CVR-100+ is a so-called
Digital Media Player (Renderer) that
can directly stream and play music
from other DLNA-devices (Digital Media Server)
It may sound complicated but it's very
comfy to install.

the CVR+ can connect with nearly every PC, Music Server or UPnP device (e.g. NAS)

Universal Plug and Play (UPnP)

UPnP means all devices or storages
that can easily be connected to your home network
so you can stream mp3s or other media to devices in the same network.

Network Attached Storage (NAS)

This is an UPnP-able hard disk that can be found
inside the network without being connected to a computer.

This is an easy way to your own music server.
Just connect an USB hard drive to your router and activate
NAS in it's configuration. The router's manual may help.
If you put music on the NAS you will see
that you can access the files
by all your DLNA-devices
like CVR-100+ or MHF-700+ from Block.
in your home network and use this as its music source. It plays all common file formats like AAC, AAC+, MP3, WAV, WMA, FLAC, even gapless

Gapless Play

Many concerts and audio dramas
are much more natural when there is
no pause between the tracks.

The CVR-100+ has the ability
to play files done with the right codex
without pause - gapless!
playing is possible.

The CVR-100+ sets up connections to the internet apart from a few minor details, pretty much by itself. You can feed the CVR-100+ with music form your PC or Mac as well. If you already own a hifi-system and want to have a network-compatible device take a look at our IR-100+. This device contains all the UPnP-features of the CVR-100+ and the triple tuner too.

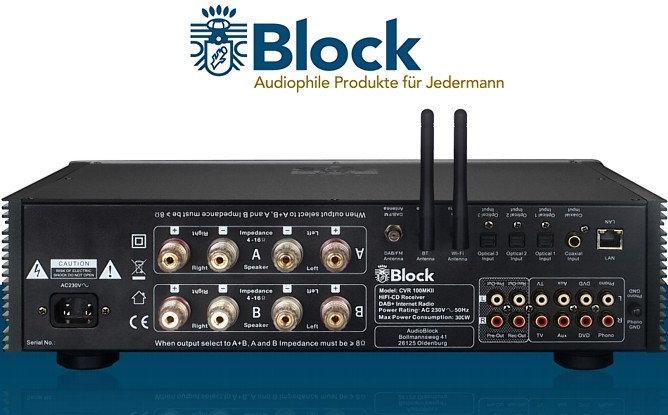

Connections:
Besides the 4 analogue Cinch/RCA input sockets, the CVR-100+ also offers a phono jack for your record player ? perfect for friends of vinyl. The CVR-100+ can become the heart of your home entertainment system. Through its connectability you can connect nearly every actual device from the home entertainment. Your DVD-player, the TV, even your old tape deck can be combined with the CVR-100+.

With our APP "Block"

The "Block" APP

If you are using an iPhone or an iPad, please visit the AppStore
and look for "Audioblock" .

If you are using an Android operated device (TabletPC or Smartphone)
please visit GogglePlay and look for
"Audioblock".

Please install the free APP.

If you want to use the APP as an remote control
you have to assure that the CVR-100+ and you're device
use the same network.
When starting the APP "Block" and connecting to the CVR-100+
you will be asked for a special code. It's "1234"

Afterwards you can fully use the APP and change
e.g. volume, tracks or radio stations! (available for iOS and Android) you are able to use your tablet or smartphone as a remote control for features like volume, changing tracks and much more.

Located on the front panel, hidden by a cover there s a USB connection, you can play your music from a USB stick or hard drive.

Also integrated on the front panel is a Headphone Socket for undisrupted music enjoyment.

It is available in diamond silver and sapphire black, always wrapped in a solid metal-casing. It doesn?t have any mentionable self-noise due to the lateral aluminum heatsink which allows Block to renounce the using of a fan. So your hi-fi enjoyment is not disturbed.

Like all block devices the CVR-100+ is also provided with a main on/off switch.

High-quality processed, with unbeatable sound-characteristics and best quality at that price.



Technical data:

Output (RMS @ 4 Ohm): 2x 60 Watt
Output (RMS @ 8 Ohm): 2x 48 Watt
Analogue Inputs: 3x Cinch 300 mV, 1x Line-In 300 mV, 1x Cinch (Phono MM) 5 mV
Digital Inputs: 3x optical, 1x coaxial, 1x USB (front)
Speaker-Outputs: A|B and AB switchable
Outputs: 6,35 mm Headphone (front), var. Pre-Out, fixed Rec-Out
Harmonic distortion: 0,007%
Crosstalk: +88dB
Frequency band: 10Hz - 26 KHz
Frequency band FM: 87,5-108 MHz
Frequency band DAB+: 174.928MHz - 239.200MHz
Supported codecs: AAC, AAC+, MP3, WAV, WMA, FLAC (gapless)
Streaming: DLNA / UPnP by BLOCK APP
Network: LAN & WIFI 2,4 und 5 GHz, Bluetooth
CD-Compability: HDCD | CD-R | CD-RW | MP3
Power supply with power switch: AC 230V - 50Hz
Equipped with remote control learning function, full metal housing, color display
Dimensiuni (Lăţime/Înălţime/Adâncime): 440/118/330mm
Greutate: 9,4kg
Garanţie: 48 luni


Preţ listă: 1199 €

Preţ Audio Alchemy: 939!!!
